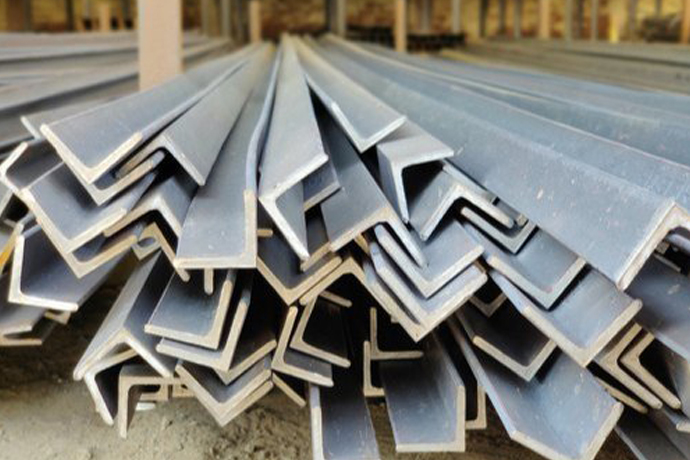

Uttaranchal Ispat offers high-quality steel angles, essential for constructing robust frameworks and structural supports. These angles are manufactured to precise specifications, ensuring they meet the rigorous demands of various construction applications.

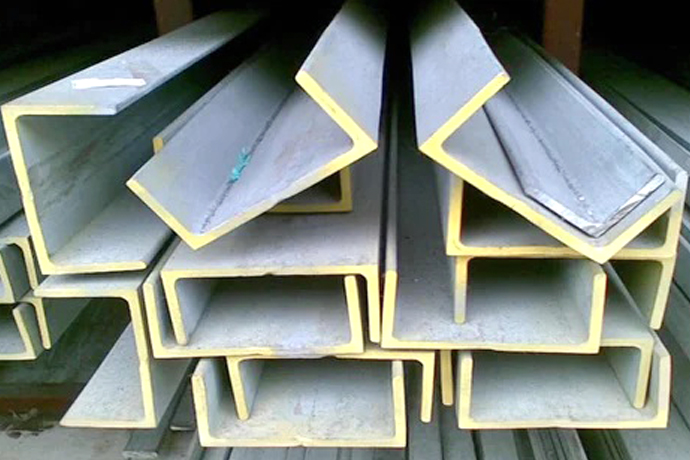

Our steel channels are designed for versatility and strength, commonly used in structural frameworks, supports, and brackets. They provide stability and durability, making them a vital component in building and infrastructure projects.

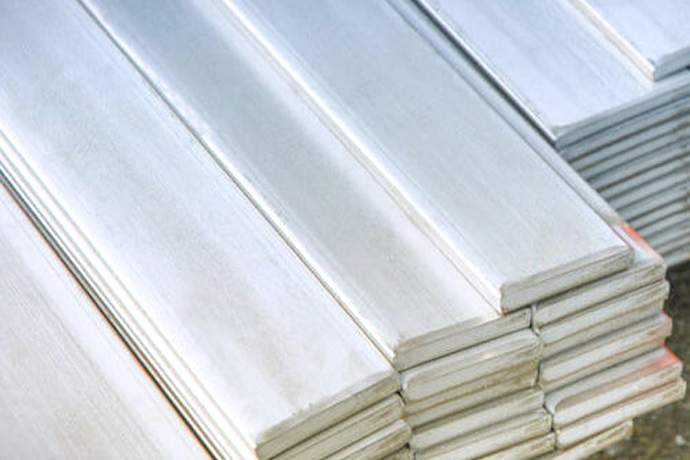

The company produces flat steel bars that are used in a wide range of applications, from structural components to manufacturing. These flats are known for their uniformity, strength, and adaptability to various construction needs.

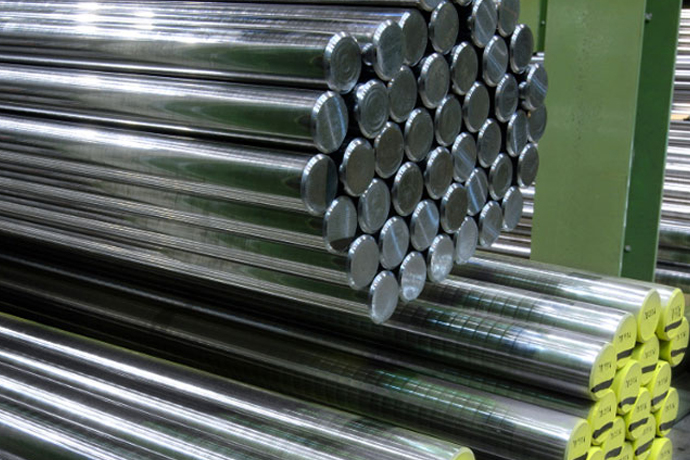

Uttaranchal Ispat's round bars are manufactured with precision to support a variety of structural and mechanical applications. Their strength and reliability make them ideal for use in construction, manufacturing, and engineering projects.
| Serial No | Physical Properties | Fe600 ( IS 1786:2008) | Himalaya Super 600 |
|---|---|---|---|
| 1 | Yield Stress N/mm2 Min. | 600 | 610 |
| 2 | Ultimate Tensile Strength N/mm2 Min. | 660 | 680 |
| 3 | UTS/YS ratio min | 1.06 | 1.11 |
| 4 | Elongation % Min. | 10 | 18 |
| 5 | Total Elongation % Min | NA | NA |
| 6 | Bend Test Upto 20mm | 5d | 5d |
| Bend Test Above 20mm | 6d | 6d | |
| 7 | Rebend Test Upto 20mm | 7d | 7d |
| Rebend Test above 20mm | 9d | 9d |
| S.no | Chemical Properties | Fe 600 (IS1786:2008) | Himalaya Super 600 TMT |
|---|---|---|---|
| 1 | % Carbon Max | 0.30 | 0.20 |
| 2 | % Sulphur max | 0.040 | 0.026 |
| 3 | % Phosphorous max | 0.040 | 0.019 |
| 4 | % (Sulphur+Phosphorous) max | 0.075 | 0.045 |
| 5 | % Carbon Equivalent max | 0.50 | 0.42 |
| Company | TMT Diameter | STANDARD IS 1786:2008 | NO. OF PCS./BUNDLE | standard weight /pc | BUNDLE WT Range | ||
|---|---|---|---|---|---|---|---|
| MINIMUM WT. | STANDARD WT. | MAX. WT. | |||||
| 1 | 8 MM | 0.367 | 0.395 | 0.422 | 19 | 4.74 | 88-91 kg |
| 2 | 10 MM | 0.574 | 0.617 | 0.660 | 13 | 7.40 | 90- 93 kg |
| 3 | 12 MM | 0.844 | 0.888 | 0.932 | 9 | 10.66 | 92-95 kg |
| 4 | 16 MM | 1.501 | 1.580 | 1.659 | 5 | 18.96 | 91-94 kg |
| 5 | 20 MM | 2.396 | 2.470 | 2.544 | 3 | 29.64 | 87-90 kg |
| 6 | 25 MM | 3.735 | 3.850 | 3.966 | 1 | 46.2 | 45-47 kg |
These bars are well-regarded for their strength and durability, essential qualities for reinforcing concrete structures.
